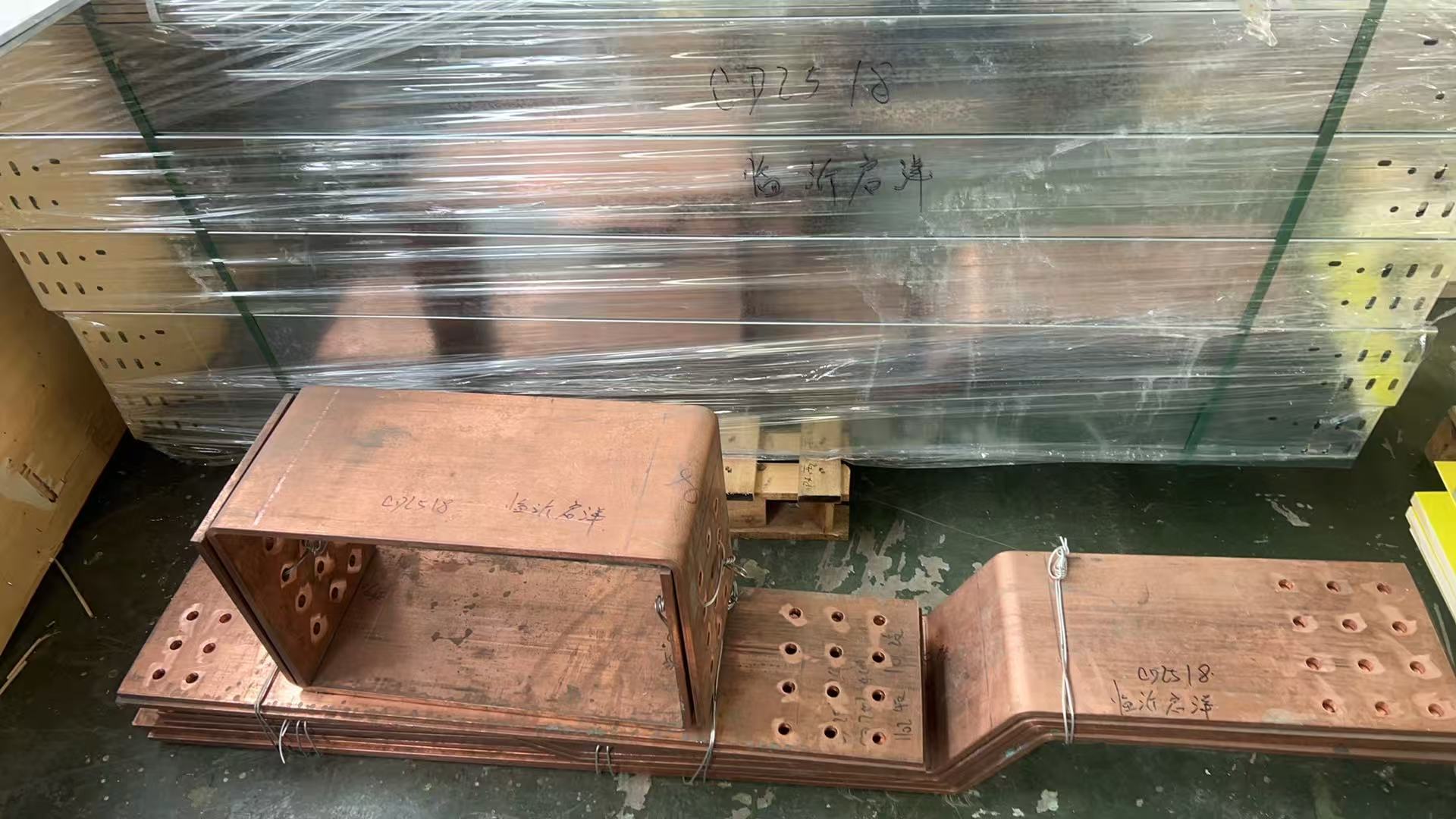

Short-Net for Electric Arc Furnaces

  • Short-Net for Electric Arc Furnaces
Miejsce pochodzenia Chiny
Nazwa handlowa Shaanxi Chengda
Orzecznictwo ISO 9001
Numer modelu Negocjować na podstawie pojemności przetwarzania sprzętu
Minimalne zamówienie 1 zestaw
Cena The price will be negotiated based on the technical requirements and supply scope of Party A
Szczegóły pakowania Omów zgodnie z konkretnymi wymaganiami strony A
Czas dostawy 10 ~ 15 dni
Zasady płatności Akredytywa, T/T, Western Union
Możliwość Supply Kompletny łańcuch dostaw produkcyjny, zaopatrzenie na czas i spełniają standardy jakości

Skontaktuj się ze mną o darmowe próbki i kupony.

Co to jest?:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Jeśli masz jakiekolwiek obawy, oferujemy 24-godzinną pomoc online.

x
Szczegóły Produktu
Podkreślić

short-net electric arc furnace spare

,

electric arc furnace replacement net

,

furnace short-net replacement part
Możesz zaznaczyć potrzebne produkty i komunikować się z nami na tablicy ogłoszeń.
Zostaw wiadomość
opis produktu
As a core high-current conduction component in the main circuit of electric arc furnaces (EAF), the short network undertakes the critical task of transmitting electrical energy from the secondary side of the transformer to the electrodes. Its performance directly impacts the smelting efficiency, energy consumption, and operational stability of the EAF. Below is a detailed product introduction:

1. Core Definition & Key Functions

  • Definition: The short network refers to the general term for secondary conductors from the low-voltage outlet terminal of the EAF transformer to the end of the graphite electrode. In practical applications, it often specifically refers to the line section from the compensator to the water-cooled cable, divided into busbar-type and copper tube-type. Among them, the water-cooled copper tube type has become the mainstream development direction due to its copper material saving and excellent cooling effect.
  • Key Functions: It not only serves as an electrical energy transmission channel but also controls the symmetrical distribution of electric arcs, improving arc stability and energy density to concentrate thermal effects. Meanwhile, it can withstand the short-term extreme thermal load of electrodes, ensuring the EAF stably generates high temperatures for scrap melting and other operations. Additionally, a reasonable short network design can balance the three-phase reactance and reduce energy consumption.

2. Core Components

Component Function Description
Compensator Mostly air-cooled or water-cooled, connecting the transformer outlet to the conductive copper tube. It compensates for length expansion and contraction caused by temperature changes, ensuring connection stability.
Conductive Copper Tube/Busbar Core conductive component. Each phase is usually equipped with 2-4 U-shaped tubes. The section connected to the transformer is arranged according to the transformer outlet form, and the section connected to the water-cooled cable is mostly arranged in an equilateral triangle. The copper tube type can cooperate with the water cooling system to reduce its own temperature.
Water-Cooled Cable A special water-through cable connecting the conductive copper tube to the conductive cross arm. Models such as SLDL series are adapted to EAFs of different capacities, meeting the conductive and cooling requirements of dynamic and static connection parts.
Stainless Steel Bracket & Insulator The bracket is made of non-magnetic stainless steel to avoid electromagnetic loss. It is matched with phenolic glass cloth plate insulators, and the conductors are fixed with stainless steel bolts to ensure electrical insulation and mechanical support.
Forged Copper Shoe Can be connected in series with the short network to form a closed cooling water circuit, while strengthening the conductive connection between the electrode and the short network, improving current conduction efficiency.

3. Key Technical Parameters

The parameters of short networks for EAFs of different capacities vary significantly. Below are reference values for some mainstream specifications:
Rated EAF Capacity Rated Transformer Capacity Secondary Current Electrode Diameter Water-Cooled Cable Model Impedance Unbalance Factor
6t 3.15MVA 9920A 300mm SLDL2400 ≤5%
12t 5MVA 14400A 350mm SLDL3600 ≤5%
15t 6.3MVA 16788A 350mm SLDL4000 ≤5%
20t 16MVA 36344A 400mm SLDL4400 ≤5%

4. Product Features

  • High-Current Adaptability: Capable of carrying ultra-large currents of tens of thousands of amperes. With the water cooling system, the current density is several times higher than that of traditional structures, while the self-weight is significantly reduced, adapting to the high-intensity smelting power supply requirements of EAFs.
  • Low-Loss Design: The copper tube and copper shoe are connected in series to form a closed-loop cooling water circuit, quickly dissipating heat from the conductor and reducing electrical energy loss caused by high temperatures. Some flat reactor-type short networks reduce mutual inductance electromotive force and conductor resistance by optimizing electrode arrangement, further saving electrical energy.
  • Harsh Environment Resistance: Components are made of high-temperature and corrosion-resistant materials, enabling stable operation in the high-temperature and high-conductive dust environment during EAF smelting. The structural design also considers mechanical strength to resist vibration and impact during smelting.
  • Strong Compatibility: Can be customized with corresponding structures and parameters according to different equipment types such as EAFs and submerged arc furnaces, as well as different smelting scenarios such as nickel-iron furnaces and industrial silicon furnaces, with strong adaptability.

5. Application Scenarios

Widely used in metallurgy and related industrial fields, such as scrap secondary refining in EAF steelmaking, melt flow control in the casting industry to ensure casting quality, and various metal smelting operations in metal processing. It is also suitable for submerged arc furnaces, calcium carbide furnaces, yellow phosphorus furnaces and other equipment, used in the smelting production of nickel-iron, ferrosilicon, calcium carbide and other products.
